PRODUCTS > INSERT AND KNIVES

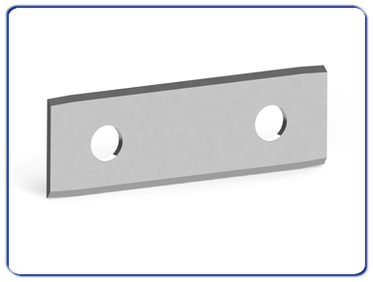

Article 0525 Reversible inserts with bevelled angles -
Technical specifications:
HW (integral tungsten carbide) straight inserts with 2 cutting edges to 35 ° clearence, and with bevelled angles.
The shape of inserts with bevelled angles, permits an perfect finish without the grooves in the wood.
Suitable for softwood, hardwood, glued.
Application:
Parts for mechanical locking tools (Article 0360).

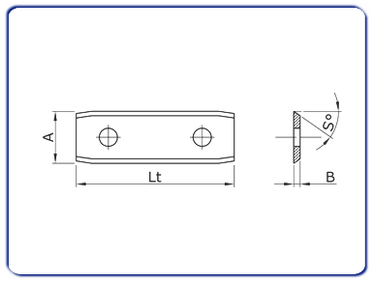

Lenght (Lt) |
Height (A) |
Thickness (B) |
Clearance (S°) |
Cutting edges (Z) |
20 |
12 |
1,50 |
35°/40° |
2 |
25 |
12 |
1,50 |
35°/40° |
2 |
30 |
12 |
1,50 |
35°/40° |
2 |
All measurments are in millimeters (mm). |
