PRODUCTS > INSERT AND KNIVES
Article 0565 Profiled inserts -
Technical specifications:

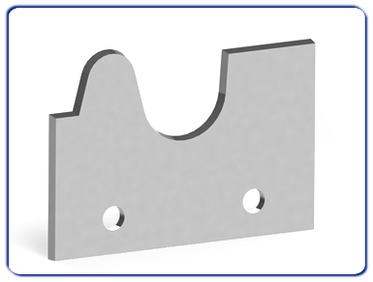

HW (integral tungsten carbide) profiled inserts with 1 cutting edge, 2 mm thickness.
Suitable for softwood, hardwood, glued-
Parts for mechanical locking tools.

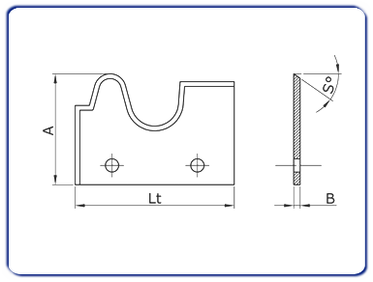

Lenght (Lt) |
Height (A) |
Thickness (B) |
Cutting edges (Z) |
15 |
15/20/25/30 |
2 |
1 |
20 |
20/25/30/35 |
2 |
1 |
25 |
20/25/30/35 |
2 |
1 |
30 |
20/25/30/35/40 |
2 |
1 |
40 |
20/25/30/35/40 |
2 |
1 |
50 |
20/25/30/35/40 |
2 |
1 |
60 |
20/25/30/35/40 |
2 |
1 |
80 |
20/25/30/35/40 |
2 |
1 |
All measurments are in millimeters (mm). |
