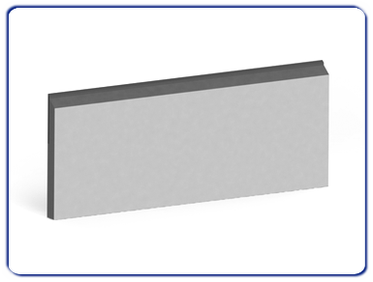

Article 0510 Steel planing knives -
Technical specifications:
HC (brazed tungsten carbide) planer knives.
Suitable for abrasive, hard and soft woods.
Application:
Parts for mechanical locking tools.

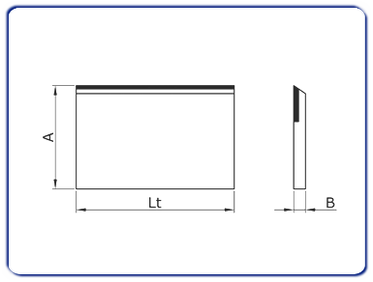

Lenght (Lt) |
Height (A) |
Thickness (B) |
Cutting edges (Z) |
60 |
20/25/30/35 |
3/4/5/6 |
1 |
80 |
20/25/30/35 |
3/4/5/6 |
1 |
100 |
20/25/30/35 |
3/4/5/6 |
1 |
120 |
20/25/30/35 |
3/4/5/6 |
1 |
150 |
20/25/30/35 |
3/4/5/6 |
1 |
180 |
20/25/30/35 |
3/4/5/6 |
1 |
200 |
20/25/30/35 |
3/4/5/6 |
1 |
230 |
20/25/30/35 |
3/4/5/6 |
1 |
250 |
20/25/30/35 |
3/4/5/6 |
1 |
300 |
20/25/30/35 |
3/4/5/6 |
1 |
350 |
20/25/30/35 |
3/4/5/6 |
1 |
400 |
20/25/30/35 |
3/4/5/6 |
1 |
450 |
25/30/35 |
3/4/5/6 |
1 |
500 |
25/30/35 |
3/4/5/6 |
1 |
530 |
30/35 |
3/4/5/6 |
1 |
600 |
30/35 |
3/4/5/6 |
1 |
630 |
30/35 |
3/4/5/6 |
1 |
700 |
30/35 |
3/4/5/6 |
1 |
800 |
30/35 |
3/4/5/6 |
1 |
900 |
30/35 |
3/4/5/6 |
1 |
1000 |
30/35 |
3/4/5/6 |
1 |
1010 |
30/35 |
3/4/5/6 |
1 |
1050 |
30/35 |
3/4/5/6 |
1 |
1070 |
30/35 |
3/4/5/6 |
1 |
All measurments are in millimeters (mm). |
