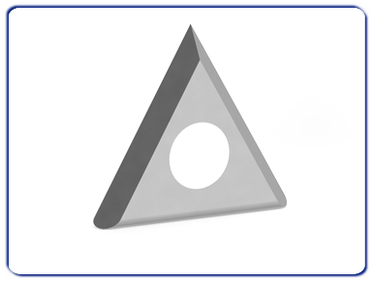

Article 0541 Triangular rounded spurs -
Technical specifications:
HW (integral tungsten carbide) triangular spurs with 2 rounded cutting edges.
Suitable for softwood, hardwood, glued-
Parts for mechanical locking tools.

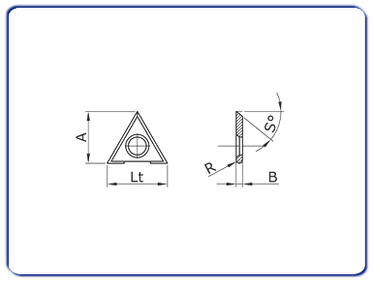

Lenght (Lt) |
Height (A) |
Thickness (B) |
Radius (R) |
Cutting edges (Z) |
23 |
21 |
3 |
1,80 |
2 |
All measurments are in millimeters (mm). |
