PRODUCTS > INSERT AND KNIVES
Article 0559 Inserts for sealing strip seats -
Technical specifications:

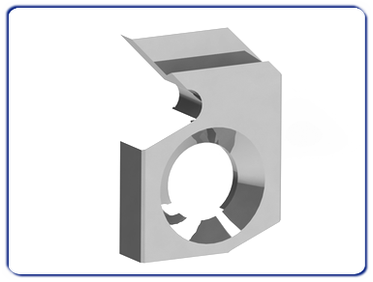

HW (integral tungsten carbide) inserts for sealing seats with 1 cutting edges, partial inclined at 30°.
Suitable for softwood, hardwood, glued-
Parts for mechanical locking tools.

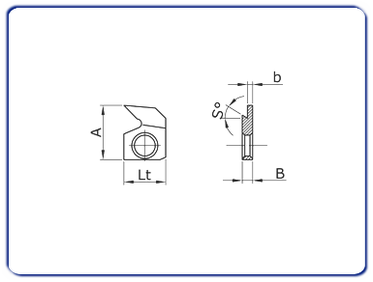

Lenght (Lt) |
Height (A) |
Thickness (B/b) |
Cutting edges (Z) |
16 |
22,70 |
7,50/3 |
2 |
All measurments are in millimeters (mm). |
