PRODUCTS > INSERT AND KNIVES

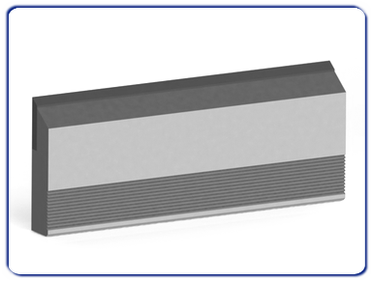

Article 0501 Serrated back knives -
Technical specifications:
HC (brazed tungsten carbide) serrated back knives, profiled to drawing.
The protrusion of the knife should not be more than 38 mm from the cutter diameter.
Suitable for abrasive, hard and soft woods.
Application:
Parts for mechanical locking tools.

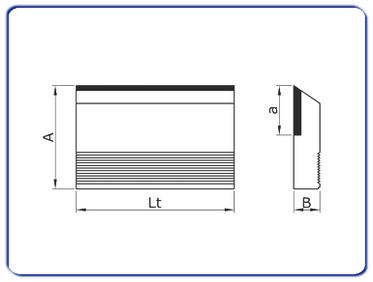

Lenght (Lt) |
Height (A) |
Height of HC (a) |
Thickness (B) |
Cutting edges (Z) |
40 |
40/50/60/70 |
15/20/25/30 |
8/10 |
1 |
50 |
40/50/60/70 |
15/20/25/30 |
8/10 |
1 |
60 |
40/50/60/70 |
15/20/25/30 |
8/10 |
1 |
80 |
40/50/60/70 |
15/20/25/30 |
8/10 |
1 |
100 |
40/50/60/70 |
15/20/25/30 |
8/10 |
1 |
130 |
40/50/60/70 |
15/20/25/30 |
8/10 |
1 |
150 |
40/50/60/70 |
15/20/25/30 |
8/10 |
1 |
230 |
40/50/60/70 |
15/20/25/30 |
8/10 |
1 |
260 |
40/50/60/70 |
15/20/25/30 |
8/10 |
1 |
500 |
40/50/60/70 |
15/20/25/30 |
8/10 |
1 |
All measurments are in millimeters (mm). |
