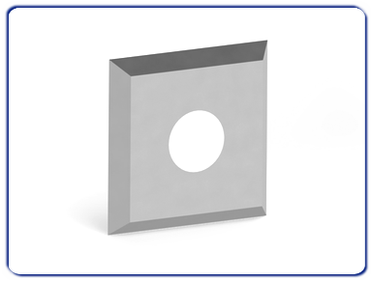

Article 0530 Square spurs -
Technical specifications:
HW (integral tungsten carbide) square spurs with 4 cutting edges to 30° or 45° clearence
Suitable for softwood, hardwood, glued-
Parts for mechanical locking tools.

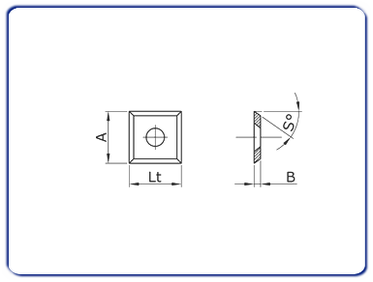

Lenght (Lt) |
Height (A) |
Thickness (B) |
Clearance (S°) |
Cutting edges (Z) |
10 |
10 |
1,50 |
30° |
4 |
12 |
12 |
1,50 |
30° |
4 |
14 |
14 |
1,20 |
30° |
4 |
14 |
14 |
2 |
30° |
4 |
13 |
13 |
2,50 |
30° |
4 |
13 |
13 |
2,50 |
45° |
4 |
15 |
15 |
4 |
30° |
4 |
All measurments are in millimeters (mm). |
