PRODUCTS > INSERT AND KNIVES

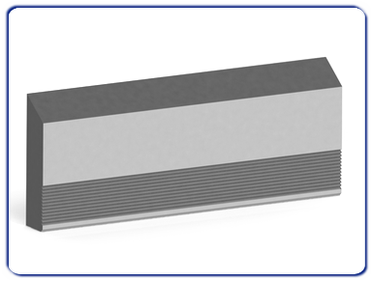

Article 0500 Serrated back knives -
Technical specifications:
HS (HSS) serrated back knives, profiled to drawing.
The protrusion of the knife should not be more than 38 mm from the cutter diameter.
Suitable for hard and soft woods.
Application:
Parts for mechanical locking tools.

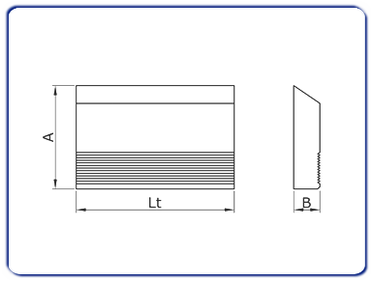

Lenght (Lt) |
Height (A) |
Thickness (B) |
Cutting edges (Z) |
40 |
40/50/60/70 |
8/10 |
1 |
50 |
40/50/60/70 |
8/10 |
1 |
60 |
40/50/60/70 |
8/10 |
1 |
80 |
40/50/60/70 |
8/10 |
1 |
100 |
40/50/60/70 |
8/10 |
1 |
130 |
40/50/60/70 |
8/10 |
1 |
150 |
40/50/60/70 |
8/10 |
1 |
230 |
40/50/60/70 |
8/10 |
1 |
260 |
40/50/60/70 |
8/10 |
1 |
500 |
40/50/60/70 |
8/10 |
1 |
All measurments are in millimeters (mm). |
