PRODUCTS > INSERT AND KNIVES

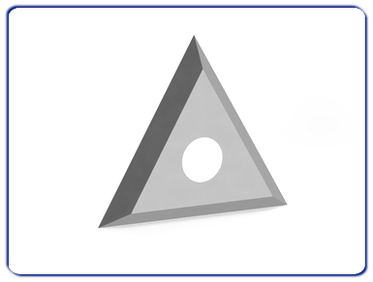

Article 0540 Triangular spurs -
Technical specifications:
HW (integral tungsten carbide) triangualr spurs with 3 cutting edges to 35° clearence
Suitable for softwood, hardwood, glued-
Parts for mechanical locking tools.

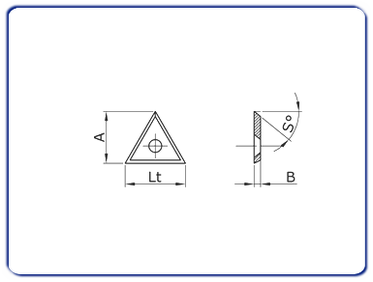

Lenght (Lt) |
Height (A) |
Thickness (B) |
Cutting edges (Z) |
22 |
19 |
2 |
3 |
All measurments are in millimeters (mm). |
