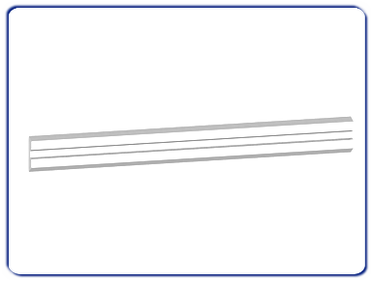

Article 0572 Inserts Variplan
Technical specifications:
Straight inserts with 2 cutting edges of steel HSS with a high chromium content (G + Mo + V) or Hc (brazed tungsten carbide).
Hc execution suitable for abrasive, hard, soft and glued woods, MDF, plywood and chipboard.
Hss execution suitable for soft, hard and non-
Application:
Parts for mechanical locking tools.

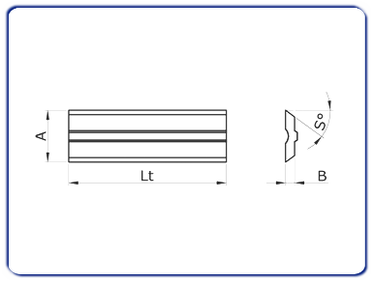

Lenght (Lt) |
Hight (A) |
Thickness (B) |
Material |
Cutting edges (Z) |
50 |
16 |
3,70 |
HW / HSS |
2 |
60 |
16 |
3,70 |
HW / HSS |
2 |
80 |
16 |
3,70 |
HW / HSS |
2 |
100 |
16 |
3,70 |
HW / HSS |
2 |
120 |
16 |
3,70 |
HW / HSS |
2 |
130 |
16 |
3,70 |
HW / HSS |
2 |
136 |
16 |
3,70 |
HW / HSS |
2 |
150 |
16 |
3,70 |
HW / HSS |
2 |
170 |
16 |
3,70 |
HW / HSS |
2 |
180 |
16 |
3,70 |
HW / HSS |
2 |
190 |
16 |
3,70 |
HW / HSS |
2 |
210 |
16 |
3,70 |
HW / HSS |
2 |
230 |
16 |
3,70 |
HW / HSS |
2 |
240 |
16 |
3,70 |
HW / HSS |
2 |
400 |
16 |
3,70 |
HW / HSS |
2 |
410 |
16 |
3,70 |
HW / HSS |
2 |
420 |
16 |
3,70 |
HW / HSS |
2 |
430 |
16 |
3,70 |
HW / HSS |
2 |
500 |
16 |
3,70 |
HW / HSS |
2 |
510 |
16 |
3,70 |
HW / HSS |
2 |
520 |
16 |
3,70 |
HW / HSS |
2 |
530 |
16 |
3,70 |
HW / HSS |
2 |
540 |
16 |
3,70 |
HW / HSS |
2 |
600 |
16 |
3,70 |
HW / HSS |
2 |
610 |
16 |
3,70 |
HW / HSS |
2 |
630 |
16 |
3,70 |
HW / HSS |
2 |
640 |
16 |
3,70 |
HW / HSS |
2 |
All measurments are in millimeters (mm). |
