PRODUCTS > INSERT AND KNIVES

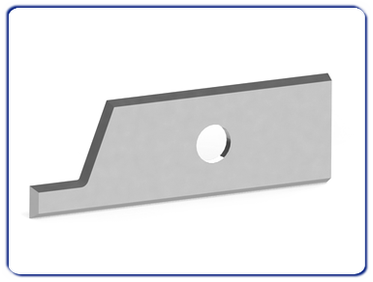

Article 0560 Profiled inserts -
Technical specifications:
HW (integral tungsten carbide) profiled inserts with 1 cutting edge realized with standard inserts 1,50 mm thickness.
Suitable for softwood, hardwood, glued-
Parts for mechanical locking tools.

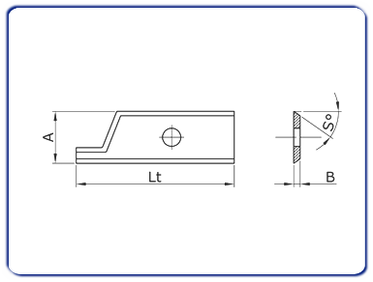

Lenght (Lt) |
Height (A) |
Thickness (B) |
Cutting edges (Z) |
12 |
12 |
1,50 |
1 |
20 |
12 |
1,50 |
1 |
25 |
12 |
1,50 |
1 |
30 |
12 |
1,50 |
1 |
40 |
12 |
1,50 |
1 |
50 |
12 |
1,50 |
1 |
60 |
12 |
1,50 |
1 |
All measurments are in millimeters (mm). |
