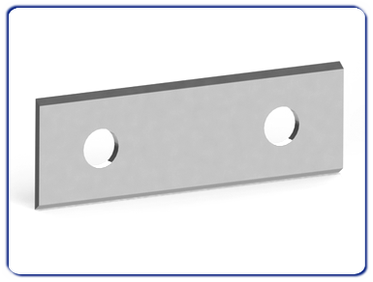

Article 0515 Reversible inserts -
Technical specifications:
HW (integral tungsten carbide) straight inserts with 2 or 4 cutting edges to 35 ° or 45 ° clearence.
Suitable for softwood, hardwood, glued.
Micro Grain HW (integral tungsten carbide) straight inserts with 2 cutting edges to 35 ° clearence.
Suitable for MDF, chipboard, melamine coated and laminate.
Application:
Parts for mechanical locking tools.

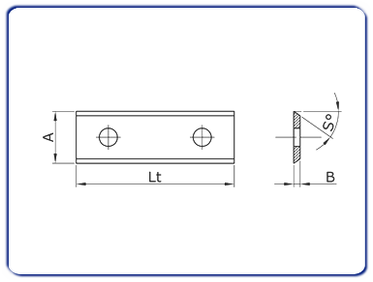

Lenght (Lt) |
Height (A) |
Thickness (B) |
Clearance (S°) |
Cutting edges (Z) |
7,50 |
12 |
1,50 |
35°/45° |
2/4 |
9,60 |
12 |
1,50 |
35°/45° |
2/4 |
11,60 |
12 |
1,50 |
35°/45° |
2/4 |
15 |
12 |
1,50 |
35°/45° |
2/4 |
20 |
9/12 |
1,50 |
35°/45° |
2/4 |
25 |
12 |
1,50 |
35°/45° |
2/4 |
30 |
9/12 |
1,50 |
35°/45° |
2/4 |
40 |
9/12 |
1,50 |
35°/45° |
2/4 |
50 |
9/12 |
1,50 |
35°/45° |
2/4 |
60 |
12 |
1,50 |
35°/45° |
2/4 |
80 |
13 |
2,20 |
35°/45° |
2/4 |
100 |
13 |
2,20 |
35°/45° |
2/4 |
120 |
13 |
2,20 |
35°/45° |
2/4 |
All measurments are in millimeters (mm). |
