PRODUCTS > INSERT AND KNIVES

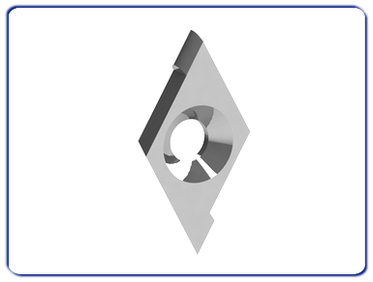

Article 0557 Internal rhombic inserts -
Technical specifications:
HW (integral tungsten carbide) internal rhombic inserts with 2 cutting edges.
Suitable for softwood, hardwood, glued-
Parts for mechanical locking tools.

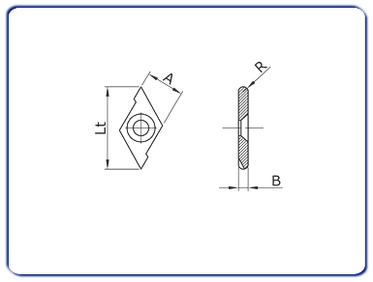

Lenght (Lt) |
Height (A) |
Thickness (B) |
Radius (R) |
Rotation |
Cutting edges (Z) |
31,70 |
16 |
3 |
1,70 |
Dx/Sx |
2 |
All measurments are in millimeters (mm). |
