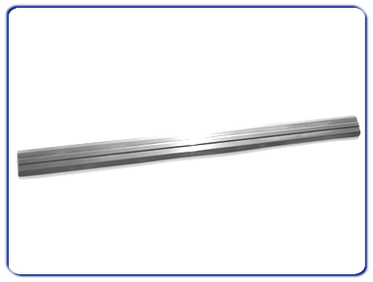

Article 0570 Inserts Centrolock
Technical specifications:
Straight inserts with 2 cutting edges of steel HSS with a high chromium content (G + Mo + V) or Hc (brazed tungsten carbide).
Hc execution suitable for abrasive, hard, soft and glued woods, MDF, plywood and chipboard.
Hss execution suitable for soft, hard and non-
Application:
Parts for mechanical locking tools (Art. 0362).

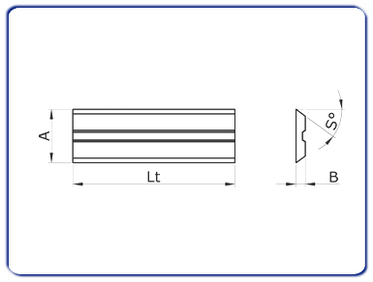

Lenght (Lt) |
Height (A) |
Thickness (B) |
Material |
Cutting edges (Z) |
60 |
16 |
3 |
HW / HSS / MC |
2 |
80 |
16 |
3 |
HW / HSS / MC |
2 |
100 |
16 |
3 |
HW / HSS / MC |
2 |
130 |
16 |
3 |
HW / HSS / MC |
2 |
150 |
16 |
3 |
HW / HSS / MC |
2 |
170 |
16 |
3 |
HW / HSS / MC |
2 |
180 |
16 |
3 |
HW / HSS / MC |
2 |
190 |
16 |
3 |
HW / HSS / MC |
2 |
230 |
16 |
3 |
HW / HSS / MC |
2 |
240 |
16 |
3 |
HW / HSS / MC |
2 |
260 |
16 |
3 |
HW / HSS / MC |
2 |
270 |
16 |
3 |
HW / HSS / MC |
2 |
310 |
16 |
3 |
HW / HSS / MC |
2 |
All measurments are in millimeters (mm). |
