PRODUCTS > INSERT AND KNIVES

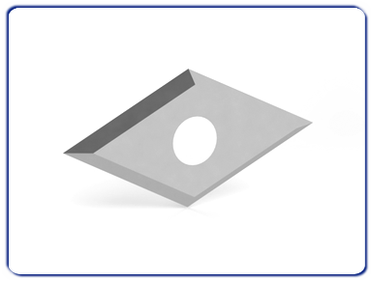

Article 0535 Rhomboidal spurs -
Technical specifications:
HW (integral tungsten carbide) rhomboidal spurs with 4 cutting edges to 35° clearence
Suitable for softwood, hardwood, glued-
Parts for mechanical locking tools.

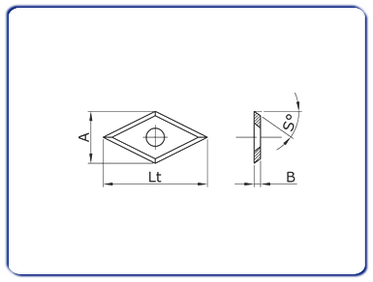

Lenght (Lt) |
Height (A) |
Thickness (B) |
Cutting edges (Z) |
28 |
14 |
2 |
4 |
All measurments are in millimeters (mm). |
