PRODUCTS > INSERT AND KNIVES

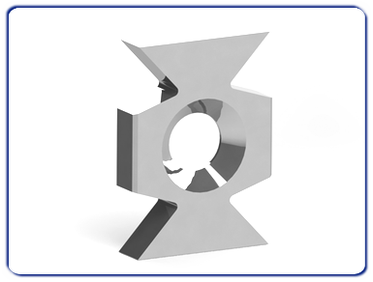

Article 0552 Grooving inserts -
Technical specifications:
HW (integral tungsten carbide) ambidextrous inserts for grooving cutters with 4 cutting edges.
Suitable for softwood, hardwood, glued-
Parts for mechanical locking tools.

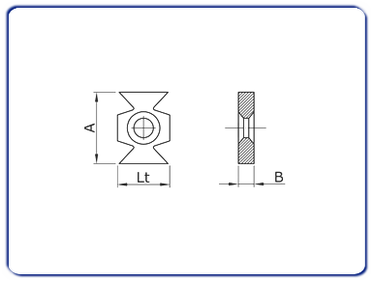

Lenght (Lt) |
Height (A) |
Thickness (B) |
Cutting edges (Z) |
16 |
22 |
5/7/10 |
4 |
All measurments are in millimeters (mm). |
