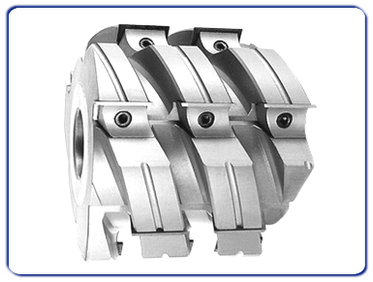

Article 0360 Insert spiral planing cutters
Technical specifications:
Insert cutter for planing positioned on a spiral design, with three starting helicies.
The tool is made with Hc (brazed tungsten carbide) "rounded" inserts 1,50 mm thick.
Suitable for abrasive, hard, soft and glued woods.
Application:
Moulder, copy-

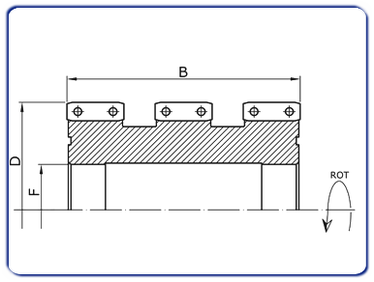

Diameter (D) |
Cutting hight (B) |
Insert hight (b) |
Bore (F) |
Cutting edges (Z) |
100 |
120/140/184/190 |
20/25/30 |
30/35 |
6 |
120 |
118/184/220/230 |
20/25/30 |
30/35/40 |
6 |
125 |
118/140/184/220/230/250 |
20/25/30 |
30/35/40 |
6 |
140 |
118/184/220/230/250 |
20/25/30 |
30/35/40 |
6 |
All measurments are in millimeters (mm). |
