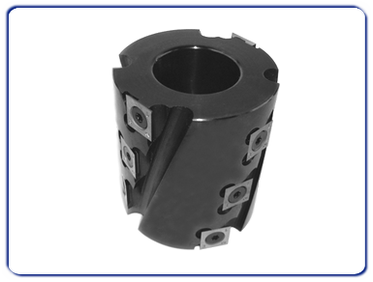

Article 0361 Insert spiral planing cutters with square spurs
Technical specifications:
Insert cutter for planing positioned on a spiral design, with 4/6 starting helicies.
The tool is made with Hc square spur inserts 14x14x2 mm thick.
Suitable for abrasive, hard, soft and glued woods.
Application:
Moulder, spindle moulder.

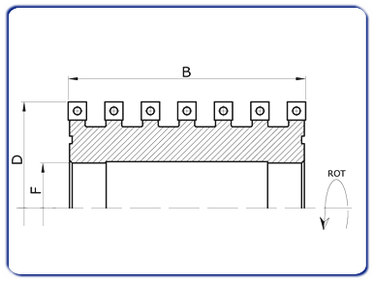

Diameter (D) |
Cutting hight (B) |
Bore (F) |
Cutting edges (Z) |
Type of machine |
62 |
60/80/120 |
30/35 |
12/16/24 |
spindle moulder |
70 |
60/80/120 |
30/35 |
12/16/24 |
spindle moulder |
80 |
60/80/120 |
30/35/40 |
12/16/24 |
spindle moulder |
100 |
120/140/190 |
35/40 |
27/33/42 |
moulder |
120 |
118/184/220/230 |
35/40 |
27/42/51 |
moulder |
125 |
118/140/184/220/230/250 |
35/40 |
27/33/42/51/57 |
moulder |
140 |
118/184/220/230/250 |
35/40/50 |
27/42/51/57 |
moulder |
All measurments are in millimeters (mm). |
