Article 0395 Insert cutters set for double tenoning machine
Technical specifications:

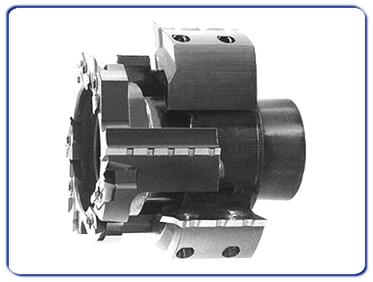

Cutter group, composed of a hogger z = 3 +3 Ri +3 Sp45° and a cutter z = 3 +3 ri, which allows adjustment of the plug 10 to 35 mm, or from 10 to 50 mm.
The tool is made with Hc (brazed tungsten carbide) inserts.
Suitable for hard, soft and glued woods.
Application:
Tenoner double type: Bacci, Balestrini, Pade, Greda.

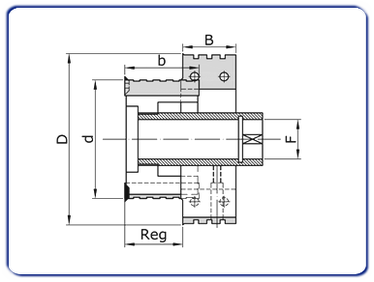

Diameter (D/d) |
Cutting hight (B/b) |
Bore (F) |
Regulation (REG) |
Cutting edges (Z) |
Machine |
80/60 |
35/30 |
25 |
10 - |
6+3+3 |
Bacci, Greda, Pade, Balestrini |
90/60 |
50/30 |
25 |
10 - |
6+3+3 |
Bacci, Greda, Pade, Balestrini |
110/70 |
30/50 |
25 |
5 - |
3+3+3+3+3 |
Bacci, Greda, Pade, Balestrini |
All measurments are in millimeters (mm). |
