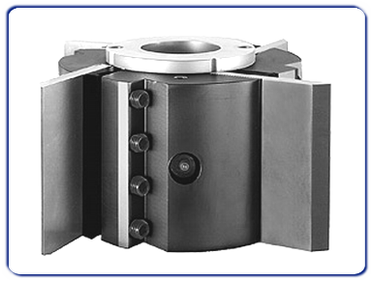

Article 0380 Serrated back cutter block HYDRO
Technical specifications:

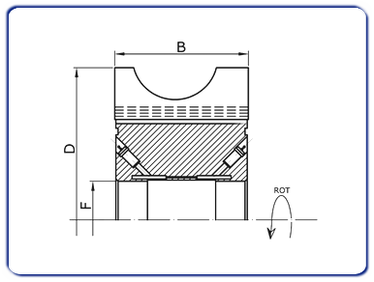

Insert profiled cutter according to technical drawing with HYDRO system.
The tool is made with HSS (18%W) serrated back knives 8 mm thick, set on serrated seats.
The cutter permits the highest feed speed and great wood removal with good surface finishing.
Suitable for hard, soft and glued woods.
Application:
Moulder.
Diameter (D) |
Cutting hight (B) |
Bore (F) |
Cutting edges (Z) |
137 |
60/100/130/150 |
35/40 |
4 |
150 |
60/100/130/150/180/230/260/310 |
35/40/50 |
4/6 |
152 |
100/130/150/180/230/260/310 |
35/40/50 |
6 |
163 |
60/100/130/150/230/260/310 |
35/40/50 |
4/6 |
167 |
100/130/150/230/260/310 |
35/40/50 |
8 |
195 |
60/100/130/150 |
35/40/50 |
8 |
215 |
60/100/130/150 |
35/40/50 |
10 |
All measurments are in millimeters (mm). |
