PRODUCTS > INSERT CUTTERS

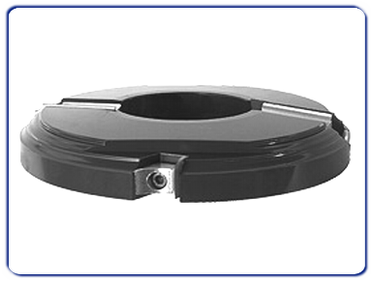

Article 0340 Panel rising insert cutters
Technical specifications:
Profiled cutter by according technical drawing. The cutters executed the profile of cabinet door panel.
The tool is made with Hc (brazed tungsten carbide) profiled inserts, 2 or 1,50 mm thick.
Suitable for abrasive, hard, soft and glued woods, MDF.
Application:
Moulder, spindle moulder, tenoning machine.

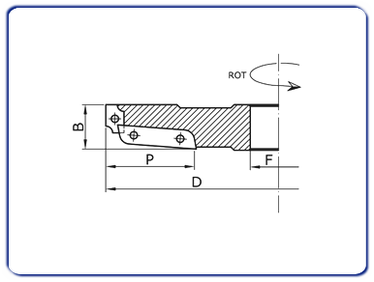

Diameter (D) |
Cutting hight (B) |
Joint depth (S) |
Bore (F) |
Cutting edges (Z) |
200 |
30 |
60 |
30/35/40/50 |
2+2/3 |
All measurments are in millimeters (mm). |
