PRODUCTS > INSERT CUTTERS

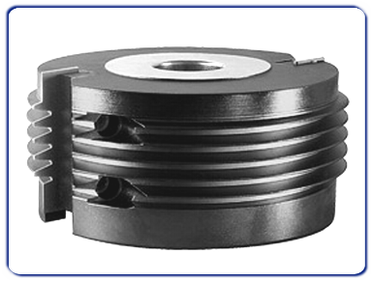

Article 0325 Insert joint cutters
Technical specifications:
Insert cutter for joints of medium depth.
The tool is made with Hc (brazed tungsten carbide) profiled inserts, 2 mm thick.
Suitable for hard, soft and glued woods, MDF.
Application:
Moulder, spindle moulder.

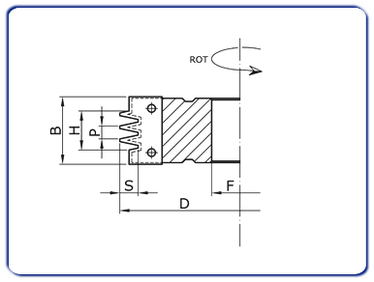

Diameter (D) |
Cutting hight (B) |
Depth of groove (S) |
Bore (F) |
Cutting edges (Z) |
140 |
40/50/60 |
8/9/10/12 |
30/35/40/50 |
2/3 |
150 |
40/50/60 |
8/9/10/12 |
30/35/40/50 |
2/3 |
All measurments are in millimeters (mm). |
