PRODUCTS > INSERT CUTTERS

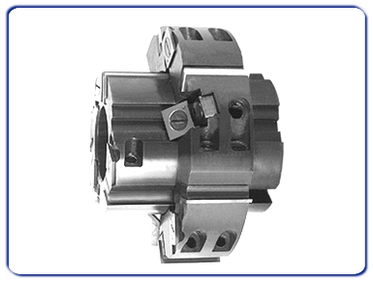

Article 0390 Insert cutters set for single tenoning machine
Technical specifications:
Cutter group, composed of a hogger z = 6 +3 ° SG45 and a cutter z = 3 +3 ri, which allows adjustment of the plug 5 to 50 mm.
The tool is made with Hc (brazed tungsten carbide) inserts, 1,50 mm thick and the spurs 2 mm thick.
Suitable for hard, soft and glued woods.
Application:
Tenoner single type: Balestrini.

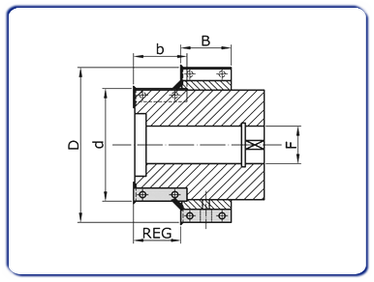

Diameter (D/d) |
Cutting hight (B/b) |
Bore (F) |
Regolation (REG) |
Cutting edges (Z) |
Machine |
125/90 |
50/50 |
30 |
15 - |
6+3+3+3 |
Bacci, Greda, Pade |
125/90 |
50/50 |
30 |
15 - |
6+3+3+3 |
old models Balestrini |
115/70 |
30/50 |
25 |
5 - |
6+3+3+3 |
Balestrini PICO |
115/70 |
30/50 |
25 |
5 - |
6+3+3+3 |
Balestrini NOVA 3 |
All measurments are in millimeters (mm). |
