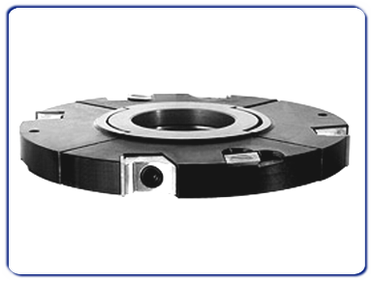

Article 0315 Adjustable insert grooving cutters

Technical specifications:
Insert grooving cutters with reversible hm integral inserts, adjustable rings supplied.
The tool is made with Hc (brazed tungsten carbide) profiled inserts, 1,50 mm thick, and the spurs on each side of the tool.
Suitable for abrasive, hard, soft and glued woods.

Application:
Moulder, spindle moulder.

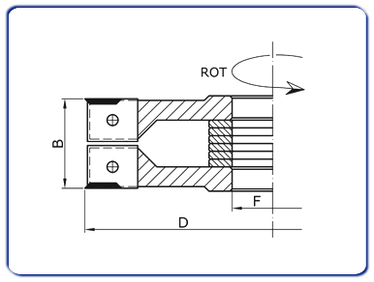

Diameter (D)	Cutting hight (B)	Bore (F)	Cutting edges (Z)
140	8-15,50/12-23,50/15-29,50/20-39,50/30-59,50	30/35/40	4+4
160	8-15,50/12-23,50/15-29,50/20-39,50/30-59,50	30/35/40	4+4
200	8-15,50/12-23,50/15-29,50/20-39,50/30-59,50	30/35/40/50	4+4
250	8-15,50/12-23,50/15-29,50/20-39,50/30-59,50	30/35/40/50	4+4
300	8-15,50/12-23,50/15-29,50/20-39,50/30-59,50	30/35/40/50	4+4

All measurments are in millimeters (mm).
