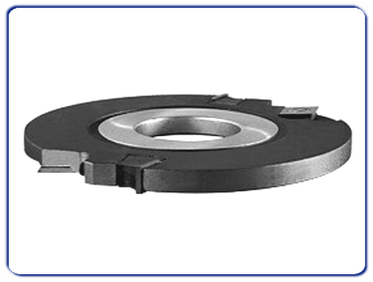

Article 0310 Insert grooving cutters
Technical specifications:
Insert grooving cutters with reversible hm integral inserts.
The tool is made with Hc (brazed tungsten carbide) profiled inserts, 1,50 mm thick, and the spurs on each side of the tool.
Suitable for abrasive, hard, soft and glued woods.
Application:
Moulder, spindle moulder.

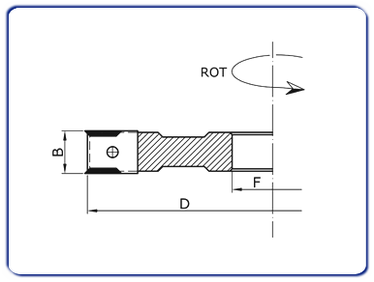

Diameter (D) |
Cutting hight (B) |
Bore (F) |
Cutting edges (Z) |
125 |
4/5/6/8/10/12/15/20/25/30 |
30/35/40/50 |
2/3/4/6 + 4 |
150 |
4/5/6/8/10/12/15/20/25/30 |
30/35/40/50 |
2/3/4/6 + 4 |
160 |
4/5/6/8/10/12/15/20/25/30 |
30/35/40/50 |
2/3/4/6 + 4 |
180 |
4/5/6/8/10/12/15/20/25/30 |
30/35/40/50 |
2/3/4/6 + 4 |
200 |
4/5/6/8/10/12/15/20/25/30 |
30/35/40/50 |
2/3/4/6 + 4 |
250 |
4/5/6/8/10/12/15/20/25/30 |
30/35/40/50 |
2/3/4/6 + 4 |
300 |
4/5/6/8/10/12/15/20/25/30 |
30/35/40/50 |
2/3/4/6 + 4 |
Shaver for moulder |
|||
Diameter (D) |
Cutting hight (B) |
Bore (F) |
Cutting edges (Z) |
120 |
10/12 |
35/40/50 |
3/4 + 2/3 |
145 |
10/12 |
35/40/50 |
3/4 + 2/3 |
160 |
10/12 |
35/40/50 |
3/4 + 2/3 |
All measurments are in millimeters (mm). |
