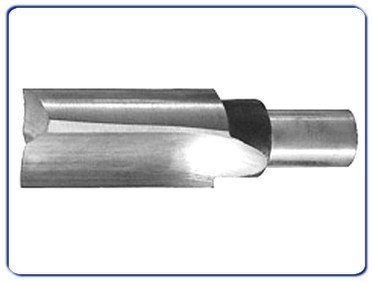

Article 0400 Router HSS bits for drill and edge
Technical specifications:
Router bits with cylindrical shank and two straight cutting edges for drilling and edging operations.
Tool is constructed of steel HSS with a high chromium content (G + Mo + V).
Suitable for softwood, hardwood and non-
Manual or electronic router.

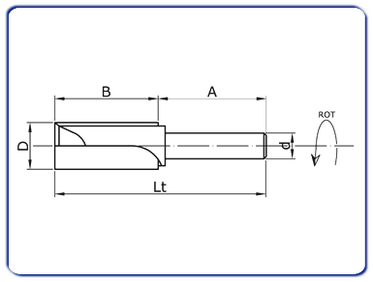

Diameter (D) |
Cutting hight (B) |
Shank (d x A) |
Cutting edges (Z) |
3 |
13 |
9,50 x 20 |
2 |
4 |
15 |
9,50 x 20 |
2 |
5 |
15 |
9,50 x 20 |
2 |
5,50 |
15 |
9,50 x 20 |
2 |
6 |
16/20 |
9,50 x 20 |
2 |
7 |
20/25 |
9,50 x 20 |
2 |
8 |
25/30 |
9,50 x 20 |
2 |
9 |
25/30 |
9,50 x 20 |
2 |
10 |
30/35 |
9,50 x 20 |
2 |
11 |
30/35 |
9,50 x 20 |
2 |
12 |
30/35 |
9,50 x 20 / 12 x 20 |
2 |
13 |
35/40 |
12 x 20 |
2 |
14 |
35/40 |
12 x 20 |
2 |
15 |
35 |
12 x 20 |
2 |
16 |
35 |
12 x 20 |
2 |
17 |
35 |
12 x 20 |
2 |
18 |
38/43 |
12 x 20 |
2 |
19 |
38/43 |
12 x 20 |
2 |
20 |
38/43 |
12 x 20 |
2 |
22 |
38/43 |
12 x 20 |
2 |
All measurments are in millimeters (mm). |
