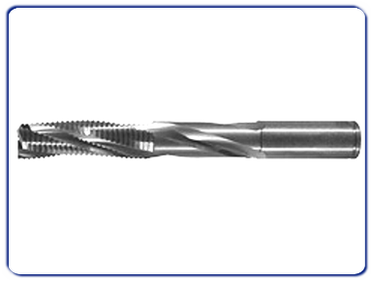

Article 0445 Helical router -
Technical specifications:
Helical router bits in Hc with three cutting edges, with or without chipbreaker, for drilling and plunging operations.
The tools is especially racommanded for door-
Tool is built of synthesized tungsten carbide and other carbides.
Suitable for abrasive, hard, soft and glued woods, MDF, chipboard, plywood.
Manual or electronic router.

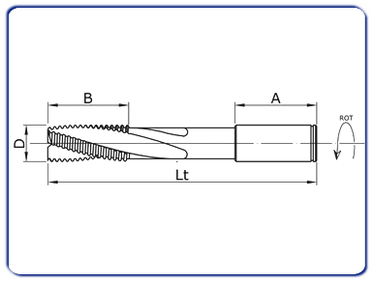

Diameter (D) |
Cutting hight (B) |
Lenght (LT) |
Cutting edges (Z) |
14 |
45 |
120 / 150 / 170 |
2 |
16 |
45 |
120 / 150 / 170 |
2 |
18 |
45 |
120 / 150 / 170 |
2 |
20 |
45 |
120 / 150 / 170 |
2 |
14 |
45 |
120 / 150 / 170 |
3 |
16 |
45 |
120 / 150 / 170 |
3 |
18 |
45 |
120 / 150 / 170 |
3 |
20 |
45 |
120 / 150 / 170 |
3 |
14 |
45 |
120 / 150 / 170 |
3 + Rt |
16 |
45 |
120 / 150 / 170 |
3 + Rt |
18 |
45 |
120 / 150 / 170 |
3 + Rt |
20 |
45 |
120 / 150 / 170 |
3 + Rt |
14 |
45 |
120 / 150 / 170 |
3 + RtC |
16 |
45 |
120 / 150 / 170 |
3 + RtC |
18 |
45 |
120 / 150 / 170 |
3 + RtC |
20 |
45 |
120 / 150 / 170 |
3 + RtC |
All measurments are in millimeters (mm). |
