PRODUCTS > ROUTER TOOLS

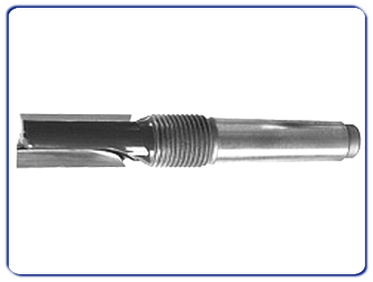

Article 0410 Router bits for drill and edge with conic shank
Technical specifications:
Router bits with conic shank and two straight cutting edges for drilling and edging operations.
Tool is constructed of steel HSS with a high chromium content (G + Mo + V) or Hc (brazed tungsten carbide).
Hc execution suitable for abrasive, hard, soft and glued woods, MDF, plywood and chipboard.
Hss execution suitable for soft, hard and non-
Manual or electronic router.

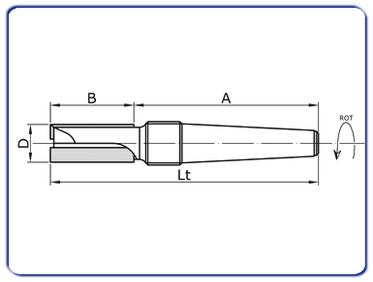

Diameter (D) |
Cutting hight (B) |
Shank (d x A) |
Cutting edges (Z) |
14 |
40 |
MK2 fil. 20 x 14Fx1" |
2 |
16 |
40/50/60 |
MK2 fil. 20 x 14Fx1" |
2 |
18 |
40/50/60 |
MK2 fil. 20 x 14Fx1" |
2 |
20 |
40/50/60 |
MK2 fil. 20 x 14Fx1" |
2 |
22 |
40/50/60 |
MK2 fil. 20 x 14Fx1" |
2 |
All measurments are in millimeters (mm). |
