PRODUCTS > ROUTER TOOLS

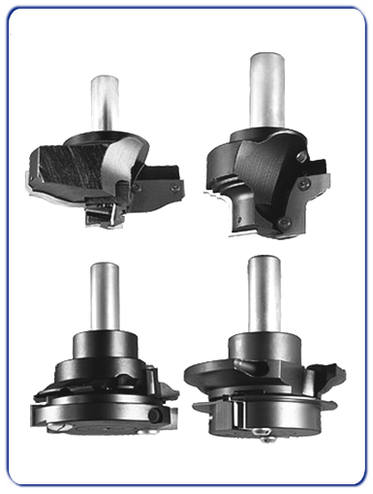

Article 0485 Insert router cutters for wood doors
Technical specifications:
Insert cutters with two Hc profiled inserts, 2 mm thickness, for solid wood door execution.
Tool is provided with the set of profiled inserts by required profile.
Suitable for abrasive, hard, soft and glued woods.
Application:
Manual or electronic router.

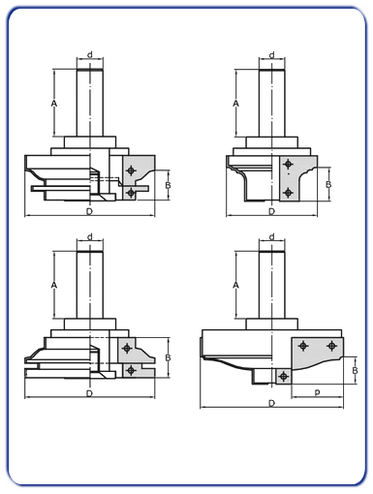

Description |
Diameter (D) |
Cutting hight (B) |
Shank (dxA) |
Cutting edges (Z) |
Profile execution |
100 |
22 |
20x50 |
2+2 |
Counter profile execution |
100 |
22 |
20x50 |
2+2 |
External edge execution |
70 |
22 |
20x50 |
2 |
Panel rising execution |
110 |
10 |
20x50 |
2+2 |
All measurments are in millimeters (mm). |
