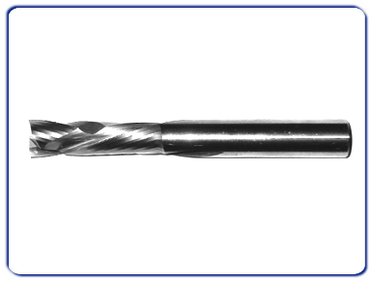

Article 0440 Helical router -
Technical specifications:
Helical router bits in Hc with two cutting edges, for plunging operations.
The tools is made with positive and negative helix. It permits an excellent finishing on lower and upper sides of panel.
Tool is built of synthesized tungsten carbide and other carbides.
Suitable for abrasive, hard, soft and glued woods, MDF, chipboard, plywood.
Application:
Manual or electronic router.

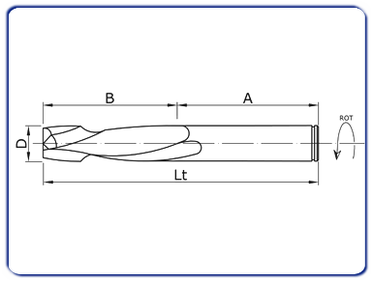

Diameter (D) |
Cutting hight (B) |
Lenght (LT) |
Cutting edges (Z) |
5 |
17 |
60 |
1 + 1 / 2 + 2 |
6 |
17/27 |
60 |
1 + 1 / 2 + 2 |
8 |
22/32 |
80 |
1 + 1 / 2 + 2 |
10 |
32/42 |
80/100 |
1 + 1 / 2 + 2 |
12 |
32/42/52 |
80/100 |
1 + 1 / 2 + 2 |
14 |
42/52 |
100 |
1 + 1 / 2 + 2 |
16 |
42/52 |
100 |
1 + 1 / 2 + 2 |
18 |
52/72/102 |
100/120/150 |
2 + 2 |
20 |
52/72 |
100/130 |
2 + 2 |
All measurments are in millimeters (mm). |
