PRODUCTS > ROUTER TOOLS

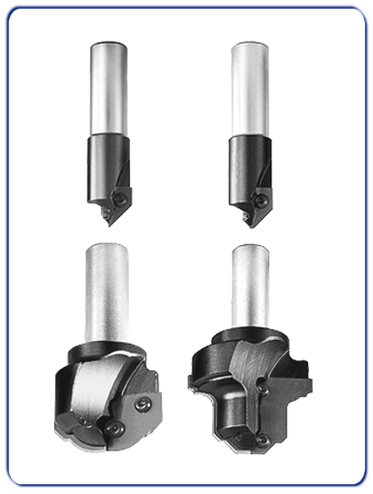

Article 0490 Insert router cutters for mdf doors
Technical specifications:
Insert cutters with two Hc profiled inserts, 2 mm thickness, for MDF door execution.
Tool is provided with the set of profiled inserts by required profile.
Suitable for MDF.
Application:
Manual or electronic router.

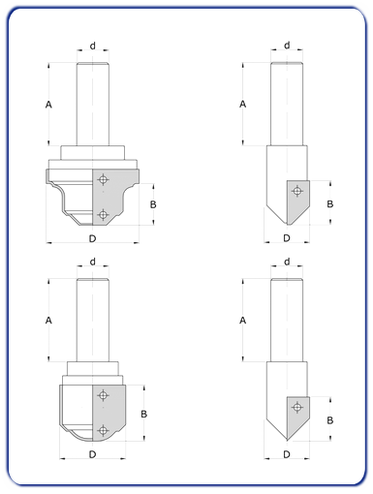

Description |
Diameter (D) |
Cutting hight (B) |
Shank (dxA) |
Cutting edges (Z) |
Profile and external edge execution |
6065/70 |
19/40 |
20x50 |
2 |
Inner profile radius reduction execution |
24 |
10/20/25 |
20x50 |
1/2 |
Inner profile 90° angle and exit groove execution |
24 |
12/20/25 |
20x50 |
1 |
Panel rising execution |
50/60 |
8,50/20 |
20x50 |
2 |
All measurments are in millimeters (mm). |
