PRODUCTS > ROUTER TOOLS

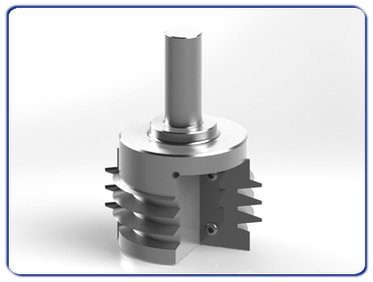

Article 0480 Insert finger jointing router cutter
Technical specifications:
Tool performs the profile of finger central joints.
Insert cutters with two Hc profiled inserts, 2 mm thickness.
Suitable for abrasive, hard, soft and glued woods.
Application:
Manual or electronic router.

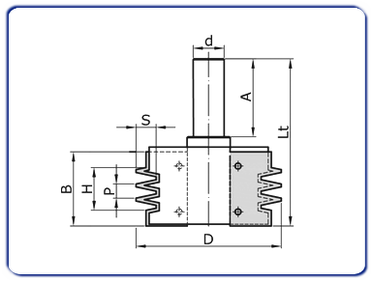

Diameter (D) |
Cutting hight (B) |
Shank (dxA) |
Cutting edges (Z) |
60 |
30/40/50/60/80 |
20x50/25x50 |
2 |
70 |
30/40/50/60/80 |
20x50/25x50 |
2 |
80 |
30/40/50/60/80 |
20x50/25x50 |
2 |
All measurments are in millimeters (mm). |
