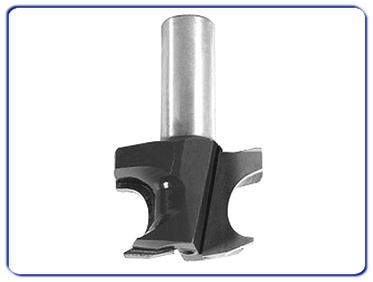

Article 0450 Profiled router bits
Technical specifications:
Profile router straight or shear cutting edges execution according to profile required.
Tool is constructed of steel C45 with brazed plates in Hc.
Suitable for abrasive, hard, soft and glued woods, MDF, chipboard, plywood.
Application:
Manual or electronic router.

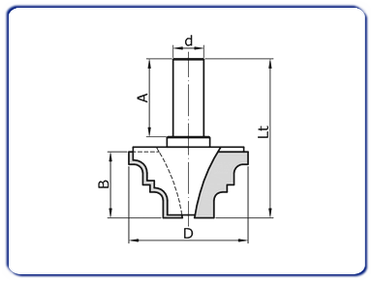

Diameter (D) |
Cutting hight (B) |
Shank (dxA) |
Cutting edges (Z) |
15 |
15/20/25/30/35/40/50/60 |
20x50/25x50/MK2F20/MK3F30 |
2/3 |
20 |
15/20/25/30/35/40/50/60 |
20x50/25x50/MK2F20/MK3F30 |
2/3 |
25 |
15/20/25/30/35/40/50/60 |
20x50/25x50/MK2F20/MK3F30 |
2/3 |
30 |
15/20/25/30/35/40/50/60 |
20x50/25x50/MK2F20/MK3F30 |
2/3 |
35 |
15/20/25/30/35/40/50/60 |
20x50/25x50/MK2F20/MK3F30 |
2/3 |
40 |
15/20/25/30/35/40/50/60 |
20x50/25x50/MK2F20/MK3F30 |
2/3 |
50 |
15/20/25/30/35/40/50/60 |
20x50/25x50/MK2F20/MK3F30 |
2/3 |
60 |
15/20/25/30/35/40/50/60 |
20x50/25x50/MK2F20/MK3F30 |
2/3 |
70 |
15/20/25/30/35/40/50/60 |
20x50/25x50/MK2F20/MK3F30 |
2/3 |
80 |
15/20/25/30/35/40/50/60 |
20x50/25x50/MK2F20/MK3F30 |
2/3 |
90 |
15/20/25/30/35/40/50/60 |
20x50/25x50/MK2F20/MK3F30 |
2/3 |
100 |
15/20/25/30/35/40/50/60 |
20x50/25x50/MK2F20/MK3F30 |
2/3 |
110 |
15/20/25/30/35/40/50/60 |
20x50/25x50/MK2F20/MK3F30 |
2/3 |
120 |
15/20/25/30/35/40/50/60 |
20x50/25x50/MK2F20/MK3F30 |
2/3 |
All measurments are in millimeters (mm). |
