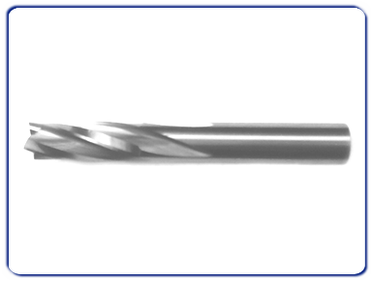

Article 0431 Helical router -
Technical specifications:
Helical router bits in Hc with four cutting edges, for drilling and plunging operations.
Tool is built of synthesized tungsten carbide and other carbides.
Suitable for abrasive, hard, soft and glued woods, MDF, chipboard, plastic.
Application:
Manual or electronic router.

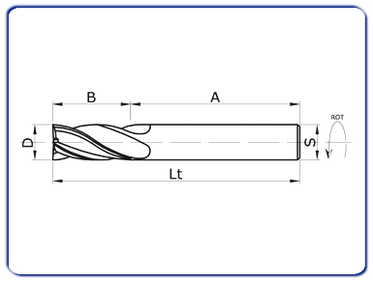

Diameter (D) |
Cutting hight (B) |
Lenght (LT) |
Cutting edges (Z) |
3 |
4/6 |
50/60 |
4 |
4 |
5/8/10 |
50/60 |
4 |
5 |
6/10/14 |
50/60 |
4 |
6 |
17/25/27 |
50/60 |
4 |
7 |
8/15/23 |
60/70 |
4 |
8 |
22/32/40 |
60/70/80 |
4 |
9 |
15/22/40 |
60/70/80 |
4 |
10 |
27/32/42/52 |
80/90/100 |
4 |
12 |
32/42/52 |
80/90/100 |
4 |
14 |
32/42/52 |
100/110 |
4 |
16 |
32/42/52/60/75 |
100/110/120/130 |
4 |
18 |
42/52/75/105 |
100/110/120/130/160 |
4 |
20 |
42/52/62/72/102 |
110/120/130/150/160 |
4 |
25 |
52/62/72/82 |
110/120/130/150/160 |
4 |
30 |
40/80 |
110/120/130/150/160 |
4 |
32 |
40/80 |
110/120/130/150/160 |
4 |
All measurments are in millimeters (mm). |
