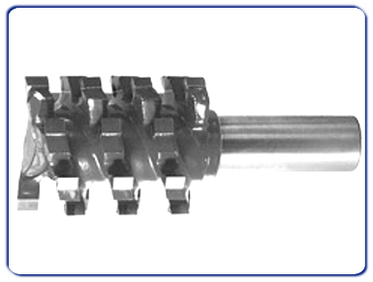

Article 0415 Multicut spiral router
Technical specifications:
Router bits with 3/6/8 fractioned cutting edges, positioned on a spiral design, for drilling and plunging operations.
Tool is built of synthesized tungsten carbide and other carbides.
Suitable for softwood, hardwood, plywood.
Application:
Manual or electronic router.

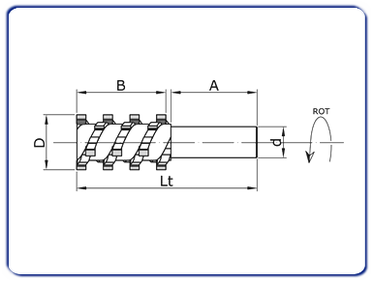

Diameter (D) |
Cutting hight (B) |
Shank (d x A) |
Cutting edges (Z) |
20 |
45 |
12 x 35 / 20 x 50 / MK2 M20 / MK2 M30 / MK3 M30 |
3 / 3 + 2 |
30 |
60/70/80/90/100 |
20 x 50 / MK2 M20 / MK2 M30 / MK3 M30 |
6 / 6 + 2 |
50 |
60/70 |
20 x 50 / MK2 M30 / MK3 M30 |
8 / 8 + 2 |
60 |
60/70/80/100 |
20 x 50 / 25 x 50 / MK2 M30 / MK3 M30 |
8 / 8 + 2 |
All measurments are in millimeters (mm). |
