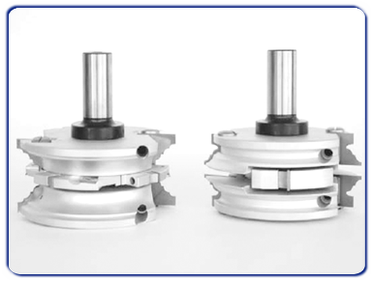

Article 0495 Insert router cutters for doors
Technical specifications:
Groups of tools for the execution of doors on CNC machines.
Variant without bars recovery consists of 9 tools.
Variant with bars recovery consists of 11 tools.
Tool is provided with the set of profiled inserts by required profile.
Suitable for abrasive, hard, soft and glued woods.
Application:
CNC router.
Description |
Diameter (D) |
Cutting edges (Z) |
Variant without bars recovery |
Variant with bars recovery |
Router bits for roughing operations |
20 |
3+rt |
X |
X |
Insert right joint cutter |
96 |
2 |
X |
X |
Insert left joint cutter |
96 |
2 |
X |
X |
Profiling of jambs and crosspiece without bars recovery |
96 |
2+2 |
X |
|
Insert cutter for crosspieces tenoning |
96 |
2+2 |
X |
|
Exterior edge door squaring |
96 |
2+2 |
X |
X |
Insert cutter for gasket |
160 |
4+4 |
X |
X |
Exterior profile crosspiece |
96 |
2+4 |
X |
X |
Panel rising execution |
120 |
2 |
X |
X |
Profiling crosspiece arch door with bars recovery |
96 |
2+2 |
X |
|
Profiling of jambs and crosspiece with bars recovery |
96 |
2+2 |
X |
|
Router bit for glass fixing lath regaing |
8 |
2 |
X |
|
Insert cutter for crosspieces tenoning bars recovery |
96 |
2+2 |
X |
All measurments are in millimeters (mm). |
