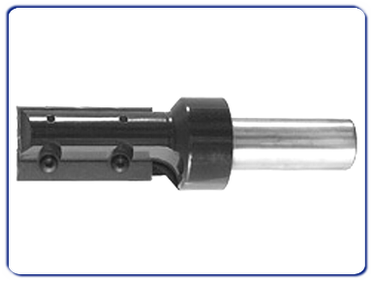

Article 0455 Insert router cutters for drill and edge
Technical specifications:
Router cutter to drill and edge, composed by z2 Hc (integral tungsten carbide) inserts.
Boxcutters are fixed by locking screws.
Suitable for abrasive, hard, soft and glued woods, MDF, chipboard, plywood.
Application:
Manual or electronic router.

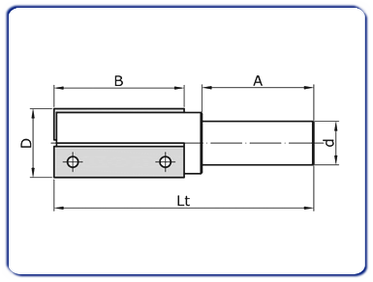

Diameter (D) |
Cutting hight (B) |
Shank (dxA) |
Cutting edges (Z) |
12 |
30 |
12x50/16x50/20x50/25x50/MK2F20/CM3F30 |
1 |
14 |
30 |
12x50/16x50/20x50/25x50/MK2F20/CM3F30 |
1 |
16 |
30 |
12x50/16x50/20x50/25x50/MK2F20/CM3F30 |
1 |
18 |
30 |
12x50/16x50/20x50/25x50/MK2F20/CM3F30 |
1 |
16 |
30/40 |
16x50/20x50/25x50/MK2F20/MK3F30 |
1 |
18 |
30/40 |
16x50/20x50/25x50/MK2F20/MK3F30 |
1 |
18 |
30/40/50 |
20x50/25x50/MK2F20/MK3F30 |
1+1 |
20 |
30/40/50 |
20x50/25x50/MK2F20/MK3F30 |
1+1 |
23 |
30/40/50 |
20x50/25x50/MK2F20/MK3F30 |
2+1 |
25 |
30/40/50 |
20x50/25x50/MK2F20/MK3F30 |
2+1 |
30 |
30/40/50 |
20x50/25x50/MK2F20/MK3F30 |
2+1 |
30 |
30/40/50 |
20x50/25x50/MK2F20/MK3F30 |
2 |
40 |
30/40/50 |
20x50/25x50/MK2F20/MK3F30 |
2 |
40 |
30/40/50 |
20x50/25x50/MK2F20/MK3F30 |
2+2 |
50 |
30/40/50 |
20x50/25x50/MK2F20/MK3F30 |
2+2 |
60 |
30/40/50 |
20x50/25x50/MK2F20/MK3F30 |
2+2 |
All measurments are in millimeters (mm). |
