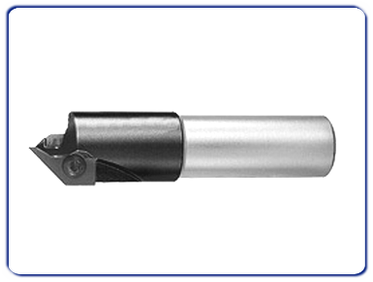

Article 0465 Insert profiled router cutters z1
Technical specifications:
Insert cutters with one or two Hc profiled inserts, 1,50 mm thickness.
Tool is provided with the set of 9 standard inserts or according to the required profile.
Suitable for abrasive, hard, soft and glued woods, MDF, chipboard, plywood.
Application:
Manual or electronic router.

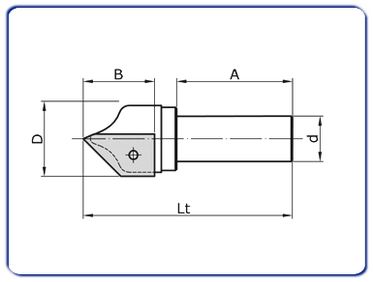

Diameter (D) |
Cutting hight (B) |
Shank (dxA) |
Cutting edges (Z) |
20 |
10 |
12x35/16x35/20x50 |
1 |
25 |
10 |
12x35/16x35/20x50 |
1 |
30 |
10 |
12x35/16x35/20x50 |
1 |
40 |
15 |
12x35/16x35/20x50 |
1 |
25 |
10 |
12x35/16x35/20x50 |
2 |
35 |
10 |
12x35/16x35/20x50 |
2 |
40 |
15 |
12x35/16x35/20x50 |
2 |
All measurments are in millimeters (mm). |
