PRODUCTS > ROUTER TOOLS

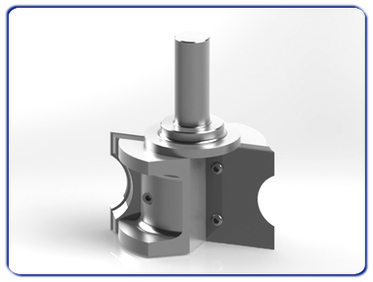

Article 0475 Multi-
Technical specifications:
Insert cutters with two Hc profiled inserts, 2 mm thickness.
Tool has two support plates shaped according to the profile.
On the same tool body can be mounted knives of different profiles, accompanied with plates shaped according to the profile.
Suitable for abrasive, hard, soft and glued woods, MDF, chipboard, plywood.
Application:
Manual or electronic router.

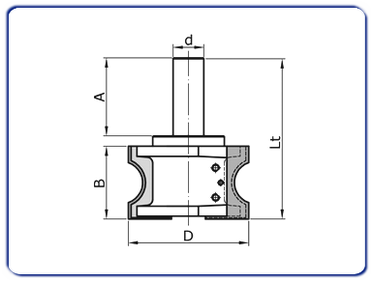

Diameter (D) |
Cutting hight (B) |
Shank (dxA) |
Cutting edges (Z) |
80 |
30/40/50/60 |
20x50/25x50 |
2 |
90 |
30/40/50/60 |
20x50/25x50 |
2 |
All measurments are in millimeters (mm). |
