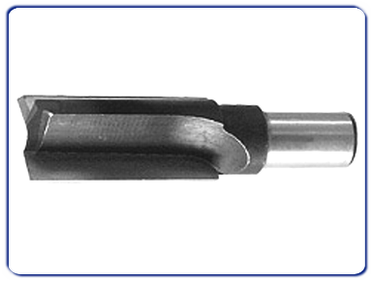

Article 0405 Router HC bits for drill and edge
Technical specifications:
Router bits with cylindrical shank and two straight cutting edges for drilling and edging operations.
Tool is built of synthesized tungsten carbide and other carbides.
Suitable for softwood, hardwood, glued woods, MDF, chipboard.
Application:
Manual or electronic router.

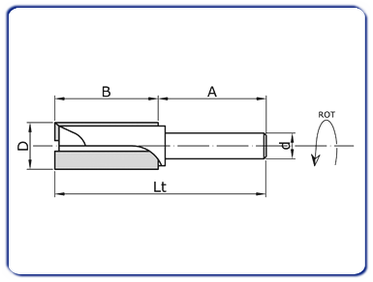

Diameter (D) |
Cutting hight (B) |
Shank (d x A) |
Cutting edges (Z) |
4 |
10 |
9,50 x 20 |
2 |
5 |
12 |
9,50 x 20 |
2 |
6 |
14 |
9,50 x 20 |
2 |
7 |
16 |
9,50 x 20 |
2 |
8 |
18 |
9,50 x 20 |
2 |
9 |
20 |
9,50 x 20 |
2 |
10 |
22 |
9,50 x 20 |
2 |
11 |
24/30 |
9,50 x 20 |
2 |
12 |
24/30 |
9,50 x 20 |
2 |
12 |
26/30 |
12 x 20 |
2 |
13 |
26/30 |
12 x 20 |
2 |
14 |
40 |
12 x 20 |
2 |
15 |
40 |
12 x 20 |
2 |
16 |
40 |
12 x 20 |
2 |
17 |
40 |
12 x 20 |
2 |
18 |
40 |
12 x 20 |
2 |
19 |
40 |
12 x 20 |
2 |
20 |
40 |
12 x 20 |
2 |
22 |
40 |
12 x 20 |
2 |
24 |
40 |
12 x 20 |
2 |
25 |
40 |
12 x 20 |
2 |
26 |
40 |
12 x 20 |
2 |
28 |
40 |
12 x 20 |
2 |
30 |
40 |
12 x 20 |
2 |
All measurments are in millimeters (mm). |
