PRODUCTS > BITS

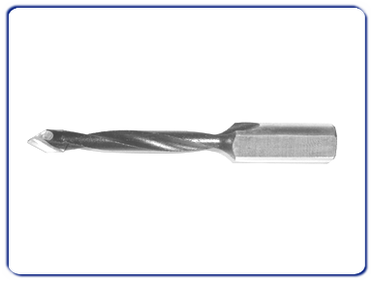

Article 0752 Through hole dowel drill bits
Technical specifications:
Boring bits for through holes, with two spiral cutting edges, head grinded.
Tool is built of synthesized tungsten carbide and other carbides.
Suitable for softwood, hardwood, glued woods, MDF, chipboard.
Application:
Boring machine.

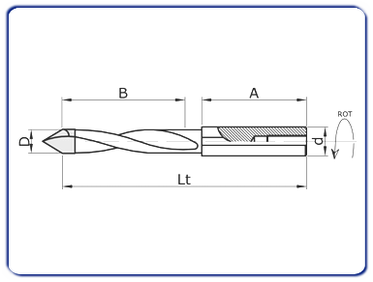

Diameter (D) |
Cutting hight (B) |
Shank (d x A) |
Cutting edges (Z) |
4 |
30/35 |
10 x 26 |
2 |
5 |
27/30/35/40/44/50 |
8 x 20 / 10 x 20 / 10 x 26 |
2 |
6 |
27/35/40/44/50 |
8 x 20 / 10 x 20 |
2 |
7 |
35/40 |
8 x 20 / 10 x 20 |
2 |
8 |
27/30/35/40/44/50 |
8 x 20 / 10 x 20 |
2 |
9 |
35 |
10 x 26 |
2 |
10 |
27/35/40/44/50 |
10 x 20 |
2 |
12 |
35/44 |
10 x 26 |
2 |
All measurments are in millimeters (mm). |
