Article 0751 Slot dowel drill bits -
Technical specifications:

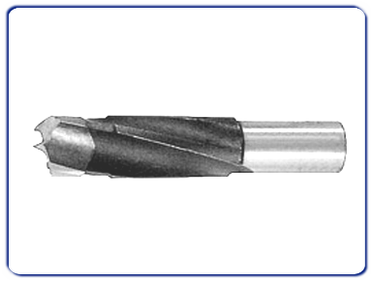

Slot dowel drill bit with two front cutting edges, two spurs and central tip for precision drilling.
Tool is built of synthesized tungsten carbide and other metallic carbides.
Suitable for abrasive, hard, soft and glued woods, MDF, plywood and chipboard.
Application:
Boring machine.

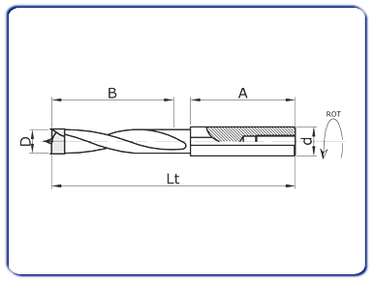

Diameter (D) |
Cutting hight (B) |
Shank (d x A) |
Cutting edges (Z) |
4 |
18/27/30/45 |
10 x 20 / 10 x 30 |
2 + 2 |
5 |
18/27/30/35/45/50/65 |
8 x 20 / 10 x 20 / 10 x 30 |
2 + 2 |
6 |
18/27/30/35/45/50/65 |
8 x 20 / 10 x 20 / 10 x 30 |
2 + 2 |
7 |
18/27/30/35/45/65 |
8 x 20 / 10 x 20 / 10 x 30 |
2 + 2 |
8 |
18/27/30/35/45/50/65 |
8 x 20 / 10 x 20 / 10 x 30 |
2 + 2 |
9 |
27/30/35/45 |
8 x 20 / 10 x 20 / 10 x 30 |
2 + 2 |
10 |
18/27/30/35/45/50/65 |
8 x 20 / 10 x 20 / 10 x 30 |
2 + 2 |
11 |
27/30/35/45 |
10 x 20 / 10 x 30 |
2 + 2 |
12 |
27/30/35/45/50/65 |
8 x 20 / 10 x 20 / 10 x 30 |
2 + 2 |
13 |
27/30/35/45 |
10 x 20 / 10 x 30 |
2 + 2 |
14 |
27/30/35/45 |
10 x 20 / 10 x 30 |
2 + 2 |
15 |
27/30/35/45 |
10 x 20 / 10 x 30 |
2 + 2 |
16 |
27/30/35/45 |
10 x 20 / 10 x 30 |
2 + 2 |
All measurments are in millimeters (mm). |
