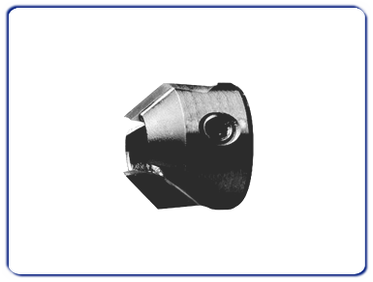

Article 0753 Countersinks for dowel drill bits
Technical specifications:
Countersink for dowel drill bits with two cutting edges, head grinded.
Tool is constructed of steel with a high chromium content (G + Mo + V) or HC reported.
Hc execution suitable for abrasive, hard, soft and glued woods, MDF, plywood and chipboard.
Hss execution suitable for soft, hard and non-
Boring machine.

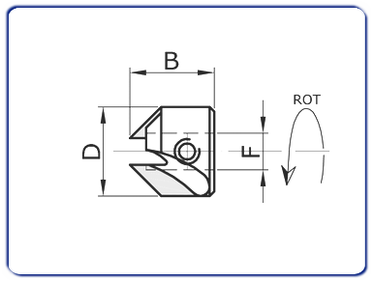

Bore (F) |
Diameter (D) |
Cutting edges (Z) |
4 |
16 |
2 |
5 |
16 |
2 |
6 |
16 |
2 |
7 |
16 |
2 |
8 |
18 |
2 |
9 |
18 |
2 |
10 |
20 |
2 |
12 |
22 |
2 |
14 |
22 |
2 |
All measurments are in millimeters (mm). |
