PRODUCTS > BITS

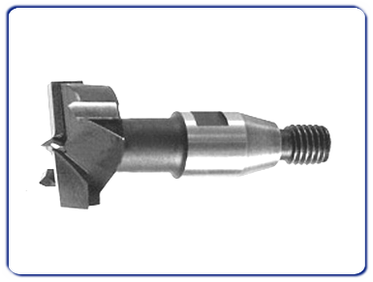

Article 0741 Hinge boring bits
Technical specifications:

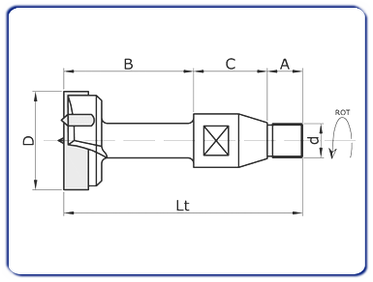

Hinge mortise drill bit with two front cutting edges, two spurs and central tip for precision drilling.
Tool is built of synthesized tungsten carbide and other carbides.
Suitable for softwood, hardwood, glued woods, MDF, chipboard.
Application:
Boring machine.
Diameter (D) |
Cutting hight (B) |
Shank (d) |
Machine |
Cutting edges (Z) |
20 |
65 |
M 10 |
Ompec, Balestrini, Vitap, Busellato |
2 + 2 |
25 |
65 |
M 10 |
Ompec, Balestrini, Vitap, Busellato |
2 + 2 |
26 |
65 |
M 10 |
Ompec, Balestrini, Vitap, Busellato |
2 + 2 |
30 |
65 |
M 10 |
Ompec, Balestrini, Vitap, Busellato |
2 + 2 |
35 |
65 |
M 10 |
Ompec, Balestrini, Vitap, Busellato |
2 + 2 |
40 |
65 |
M 10 |
Ompec, Balestrini, Vitap, Busellato |
2 + 2 |
All measurments are in millimeters (mm). |
