PRODUCTS > BITS
Article 0750 Slot dowel drill bits -
Technical specifications:

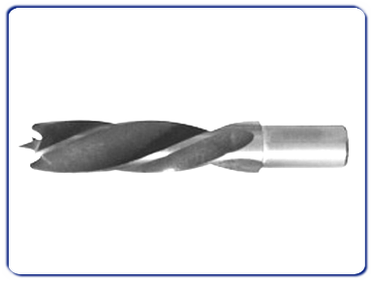

Slot dowel drill bit with two front cutting edges, two spurs and central tip for precision drilling.
Tool is constructed of steel with a high chromium content (G + Mo + V).
Suitable for softwood, hardwood, non glued woods.
Application:
Boring machine.

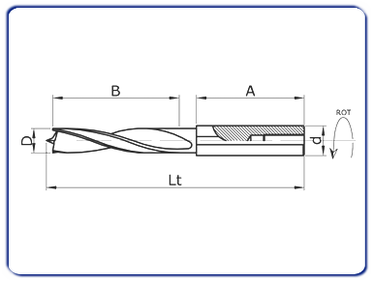

Diameter (D) |
Cutting hight (B) |
Shank (d x A) |
Cutting edges (Z) |
3 |
9/18 |
10 x 30 |
2 |
4 |
20/27 |
10 x 30 |
2 |
5 |
22/30/43 |
10 x 30 |
2 |
6 |
22/30/40/43/50 |
10 x 30 |
2 |
7 |
30/40/43/50 |
10 x 30 |
2 |
8 |
30/40/43/50 |
10 x 30 |
2 |
9 |
30/40/43/50 |
10 x 30 |
2 |
10 |
30/40/43/50 |
10 x 30 |
2 |
12 |
30/40/43/50 |
10 x 30 |
2 |
14 |
30/40/50 |
10 x 30 |
2 |
All measurments are in millimeters (mm). |
