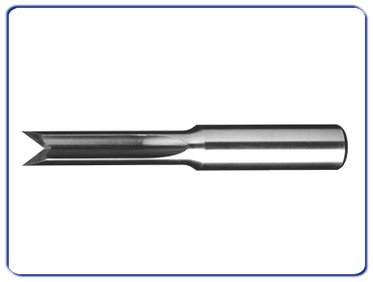

Article 0701 Mortising bits z2 -
Technical specifications:
Mortise bit with two HSS straight cutting edges, haed grinded only
Tool is constructed of steel with a high chromium content (G + Mo + V).
Suitable for softwood and hardwood.
Application:
Mortising machine.

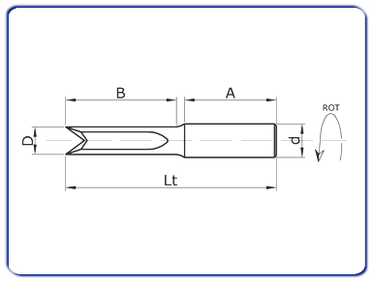

Diameter (D) |
Lenght (Lt) |
Shank (d x A) |
Cutting edges (Z) |
6 |
90 |
13 x 50 / 16 x 50 |
2 |
7 |
95 |
13 x 50 / 16 x 50 |
2 |
8 |
95 |
13 x 50 / 16 x 50 |
2 |
9 |
100 |
13 x 50 / 16 x 50 |
2 |
10 |
105 |
13 x 50 / 16 x 50 |
2 |
11 |
110 |
13 x 50 / 16 x 50 |
2 |
12 |
115 |
13 x 50 / 16 x 50 |
2 |
13 |
120 |
13 x 50 / 16 x 50 |
2 |
6 |
100 |
13 x 50 / 16 x 50 |
2 |
7 |
100 |
13 x 50 / 16 x 50 |
2 |
8 |
100 |
13 x 50 / 16 x 50 |
2 |
9 |
100 |
13 x 50 / 16 x 50 |
2 |
10 |
110 |
13 x 50 / 16 x 50 |
2 |
11 |
110 |
13 x 50 / 16 x 50 |
2 |
12 |
110 |
13 x 50 / 16 x 50 |
2 |
13 |
110 |
13 x 50 / 16 x 50 |
2 |
14 |
110 |
13 x 50 / 16 x 50 |
2 |
15 |
110 |
13 x 50 / 16 x 50 |
2 |
16 |
110 |
13 x 50 / 16 x 50 |
2 |
17 |
110 |
13 x 50 / 16 x 50 |
2 |
18 |
110 |
13 x 50 / 16 x 50 |
2 |
19 |
110 |
13 x 50 / 16 x 50 |
2 |
20 |
110 |
13 x 50 / 16 x 50 |
2 |
All measurments are in millimeters (mm). |
