PRODUCTS > BITS

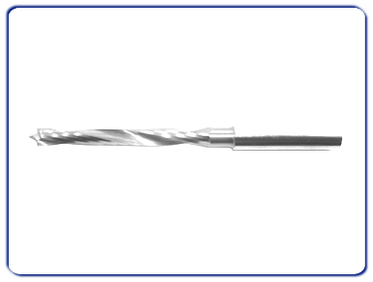

Article 0772 Hinge anuba bits -
Technical specifications:
Hinge anuba drill bit with one diameter and two front cutting edges, one spur for precision drilling.
Tool is built of synthesized tungsten carbide and other metallic carbides.
Suitable for abrasive, hard, soft and glued woods, MDF, chipboard, plastic.
Application:
Boring machine, CNC.

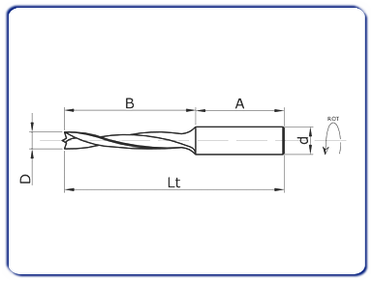

Diameter (D) |
Cutting hight (B) |
Shank (d x A) |
Cutting edges (Z) |
5,00 |
40 |
5/10 |
2 |
5,70 |
45 |
6/10 |
2 |
6,50 |
50 |
8/10 |
2 |
6,75 |
65 |
8/10 |
2 |
7,00 |
50/55 |
8/10 |
2 |
7,25 |
60/65 |
8/10 |
2 |
7,70 |
60 |
8/10 |
2 |
7,75 |
60/70 |
8/10 |
2 |
8,20 |
60/70 |
10 |
2 |
8,50 |
60/70 |
10 |
2 |
8,70 |
70/80 |
10 |
2 |
on request |
on request |
on request |
2 |
All measurments are in millimeters (mm). |
