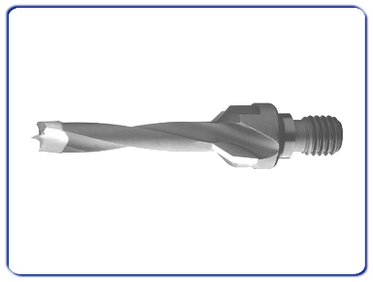

Article 0735 Boring bits with countersink
Technical specifications:
Drill bit with two head grinded spiral cutting edges and two cutting edges for countersink execution.
Tool is constructed of steel with a high chromium content (G + Mo + V) or HC reported.
Hc execution suitable for abrasive, hard, soft and glued woods, MDF, plywood and chipboard.
Hss execution suitable for soft, hard and non-
Boring machine.

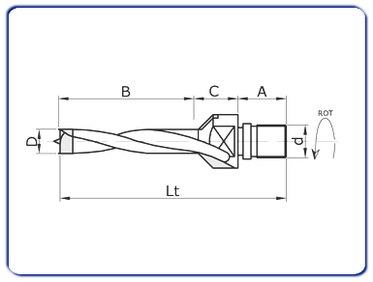

Diameter (D) |
Cutting hight (B) |
Shank (d) |
Machine |
Cutting edges (Z) |
5 |
30/40/50 |
M 10 |
Morbidelli, Biesse, Weeke, Reimal, Masterwood, Vitap |
2 + 2 |
6 |
30/40/50 |
M 10 |
Morbidelli, Biesse, Weeke, Reimal, Masterwood, Vitap |
2 + 2 |
7 |
30/40/50 |
M 10 |
Morbidelli, Biesse, Weeke, Reimal, Masterwood, Vitap |
2 + 2 |
8 |
30/40/50 |
M 10 |
Morbidelli, Biesse, Weeke, Reimal, Masterwood, Vitap |
2 + 2 |
9 |
30/40/50 |
M 10 |
Morbidelli, Biesse, Weeke, Reimal, Masterwood, Vitap |
2 + 2 |
10 |
30/40/50 |
M 10 |
Morbidelli, Biesse, Weeke, Reimal, Masterwood, Vitap |
2 + 2 |
11 |
30/40/50 |
M 10 |
Morbidelli, Biesse, Weeke, Reimal, Masterwood, Vitap |
2 + 2 |
12 |
30/40/50 |
M 10 |
Morbidelli, Biesse, Weeke, Reimal, Masterwood, Vitap |
2 + 2 |
13 |
30/40/50 |
M 10 |
Morbidelli, Biesse, Weeke, Reimal, Masterwood, Vitap |
2 + 2 |
14 |
30/40/50 |
M 10 |
Morbidelli, Biesse, Weeke, Reimal, Masterwood, Vitap |
2 + 2 |
15 |
30/40/50 |
M 10 |
Morbidelli, Biesse, Weeke, Reimal, Masterwood, Vitap |
2 + 2 |
16 |
30/40/50 |
M 10 |
Morbidelli, Biesse, Weeke, Reimal, Masterwood, Vitap |
2 + 2 |
All measurments are in millimeters (mm). |
