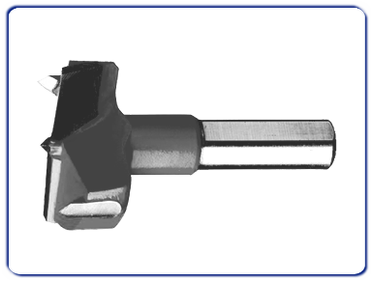

Article 0720 Hinge mortising bits
Technical specifications:
Mortise bit with two shear angle cutting edges and two inclined spurs.
Tool is constructed of steel with a high chromium content (G + Mo + V) or HC reported.
Hc execution suitable for abrasive, hard, soft and glued woods, MDF, plywood and chipboard.
Hss execution suitable for soft, hard and non-
Mortising machine.

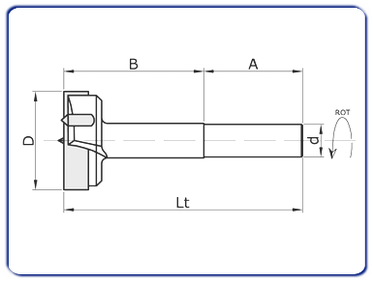

Diameter (D) |
Lenght (Lt) |
Shank (d x A) |
Cutting edges (Z) |
8 |
120 |
13/16 x 50 |
2 + 2 |
10 |
120 |
13/16 x 50 |
2 + 2 |
12 |
120 |
13/16 x 50 |
2 + 2 |
14 |
120 |
13/16 x 50 |
2 + 2 |
15 |
120 |
13/16 x 50 |
2 + 2 |
16 |
120 |
13/16 x 50 |
2 + 2 |
18 |
120 |
13/16 x 50 |
2 + 2 |
20 |
120 |
13/16 x 50 |
2 + 2 |
22 |
125 |
13/16 x 50 |
2 + 2 |
24 |
125 |
13/16 x 50 |
2 + 2 |
25 |
125 |
13/16 x 50 |
2 + 2 |
26 |
125 |
13/16 x 50 |
2 + 2 |
28 |
130 |
13/16 x 50 |
2 + 2 |
30 |
130 |
13/16 x 50 |
2 + 2 |
32 |
130 |
13/16 x 50 |
2 + 2 |
34 |
130 |
13/16 x 50 |
2 + 2 |
35 |
130 |
13/16 x 50 |
2 + 2 |
36 |
130 |
13/16 x 50 |
2 + 2 |
38 |
130 |
13/16 x 50 |
2 + 2 |
40 |
130 |
13/16 x 50 |
2 + 2 |
45 |
130 |
13/16 x 50 |
2 + 2 |
50 |
130 |
13/16 x 50 |
2 + 2 |
55 |
140 |
13/16 x 50 |
2 + 2 |
60 |
140 |
13/16 x 50 |
2 + 2 |
All measurments are in millimeters (mm). |
