PRODUCTS > BITS

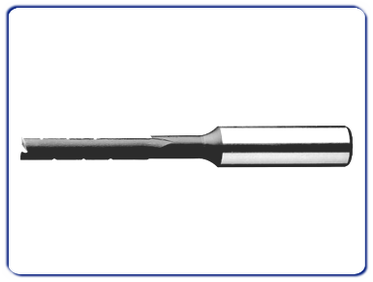

Article 0700 Straight flute mortise bits z2
Technical specifications:
Mortise bit with two HSS straight cutting edges.
Tool is constructed of steel with a high chromium content (G + Mo + V).
Suitable for softwood and hardwood.
Application:
Mortising machine.

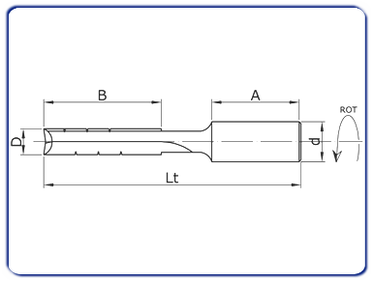

Diameter (D) |
Lenght (Lt) |
Shank (d x A) |
Cutting edges (Z) |
6 |
105 |
13/16 x 50 |
2 |
7 |
110 |
13/16 x 50 |
2 |
8 |
115 |
13/16 x 50 |
2 |
9 |
120 |
13/16 x 50 |
2 |
10 |
125 |
13/16 x 50 |
2 |
11 |
130 |
13/16 x 50 |
2 |
12 |
135 |
13/16 x 50 |
2 |
13 |
140 |
13/16 x 50 |
2 |
14 |
145 |
13/16 x 50 |
2 |
15 |
150 |
13/16 x 50 |
2 |
16 |
155 |
13/16 x 50 |
2 |
17 |
160 |
13/16 x 50 |
2 |
18 |
165 |
13/16 x 50 |
2 |
19 |
170 |
13/16 x 50 |
2 |
20 |
175 |
13/16 x 50 |
2 |
21 |
180 |
13/16 x 50 |
2 |
22 |
180 |
13/16 x 50 |
2 |
23 |
180 |
13/16 x 50 |
2 |
24 |
180 |
13/16 x 50 |
2 |
25 |
180 |
13/16 x 50 |
2 |
All measurments are in millimeters (mm). |
